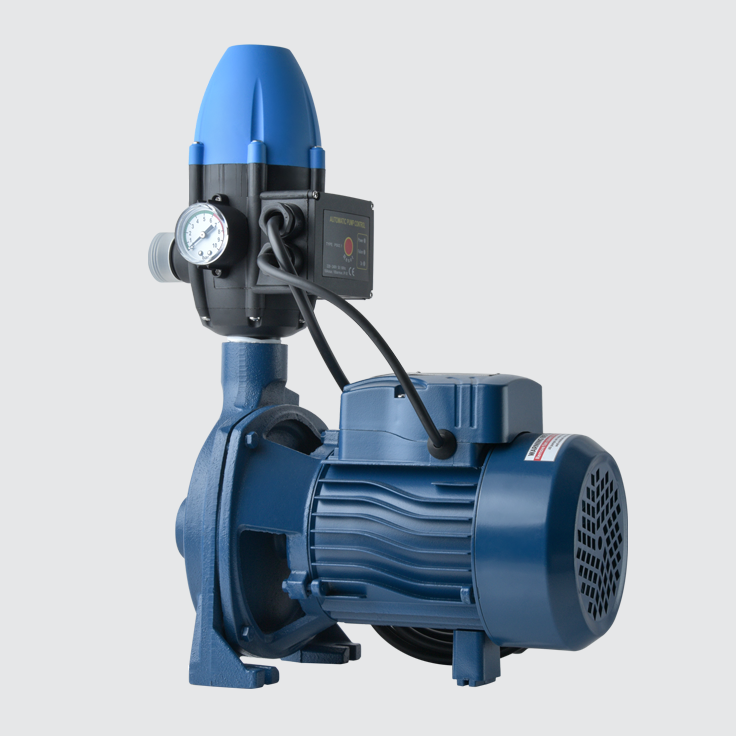

0.55kW Centrifugal Booster Pump

0.55kW Centrifugal Booster Pump

This Booster Pump is ideal if you require higher flow rates. Its best efficiency pressure range is 1.6 to 2.4 bar, and its optimum flow range is 40 to 80 litres per minute. The flow control switch automatically starts the pump when pressure decreases, and switches it off when there is no flow.

To connect this pump to your JoJo water tank, simply pair with our all-inclusive pump-to-tank connector kit.

Product Benefits:

• 1-year warranty
• Best efficiency pressure range 1.6 to 2.4 bar
• Best efficiency flow range 40 to 80 lt/min
• Energy-efficient
• Easy to operate
• Automatic start/stop
• Dry running protection
• Over-current protection
• Minimal maintenance required
• Pre-wired with a 3-point plug
• Brass impeller
• Stainless steel shaft

Important Information:

• Recommended suction pipe: HDPE or Helical coil reinforced flexible hose (minimum 1″/25mm)
• Recommended discharge pipe: Copper, HDPE or any SABS approved piping (3/4″/22mm)
• The pump must be earthed with no strain placed on the electrical cable.
• All maintenance should be carried out with the power supply disconnected.
• The pump is designed for clean water use only, i.e. water containing no solid particles. Pumping muddy water or water containing suspended solids will severely reduce the lifespan of the unit and falls outside of the factory warranty.
• Extending the cable will affect your factory warranty. Always make use of an approved extending plug adapter.
• The pump should be installed in a ventilated, undercover area to protect the unit against direct sunlight, rain and spray from any irrigation system. A JoJo pump cover is recommended for best protection.
• Please refer to our Usage Instructions in the download section of this page for detailed installation and operation guidelines.
