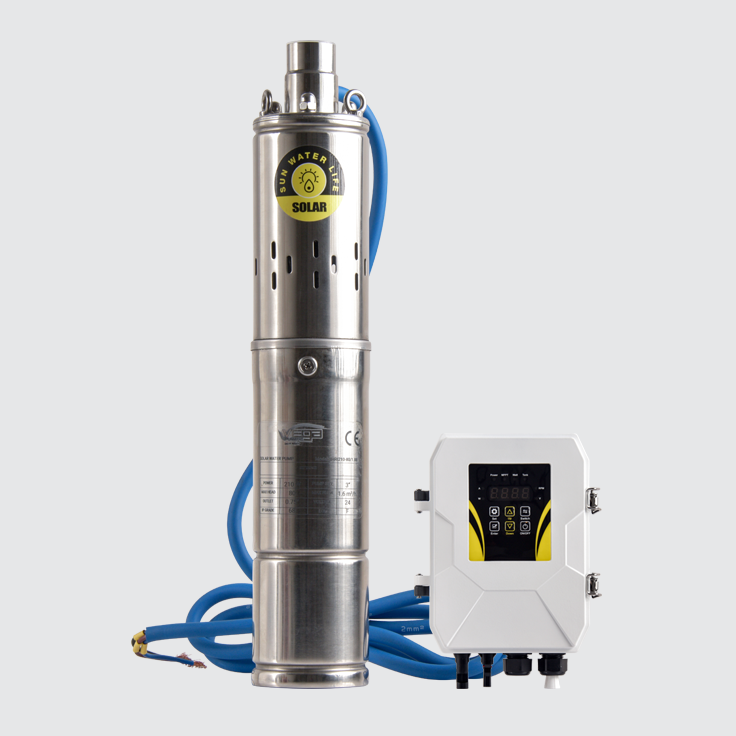

0.21kW 3” Solar Borehole Pump Kit

0.21kW 3” Solar Borehole Pump

This compact 0.21kW solar borehole pump is specifically designed for use in remote or off-grid locations where conventional power sources are unavailable. Its lightweight construction and intelligent control system allow for efficient water extraction while maximising available solar energy.

Equipped with advanced motor protection and MPPT technology, the pump automatically adjusts to changing solar conditions, ensuring stable operation throughout the day. For optimal performance, the unit is recommended for use with a 330W solar panel (not included).

Product Features & Benefits

• 1-year warranty
• Easy to operate
• Durable construction for long-lasting reliability
• Soft-start protection for smoother operation
• Built-in motor protection against electrical overload
• Automatic start and stop for convenient operation
• Solar-optimised MPPT technology for better energy use
• Intelligent water shortage protection prevents damage during low-water conditions
• High-quality NSK bearings with alloy mechanical seal for smooth operation and extended service life
• Versatile application range, suitable for boreholes, wells, tanks, rivers and dams

Included in this Kit

• Pump and motor
• Borehole pump probe & tank level probe
• Control box
• 1m of cable joined to the motor

Important Information

• Always disconnect the power supply before carrying out any maintenance.
• Designed for clean water applications only. Pumping muddy water or water containing suspended solids will significantly reduce the pump’s lifespan and is not covered by the factory warranty.
• Not suitable for corrosive water with sand content exceeding 1% or particle sizes larger than 5mm.
• Not designed for use with brackish water.
• Suitable for installation in tanks, boreholes, wells, rivers and dams with a minimum diameter of 80mm. Note: If installed in a hole larger than 100mm in diameter, a 4-inch sleeve is required to ensure adequate cooling.
• Recommended for use with a 330W solar panel only. Using a panel outside of this specification will limit performance and falls outside the factory warranty.
• Ensure the solar panel is installed in an area with maximum sun exposure. Any shading will significantly reduce pump performance.
