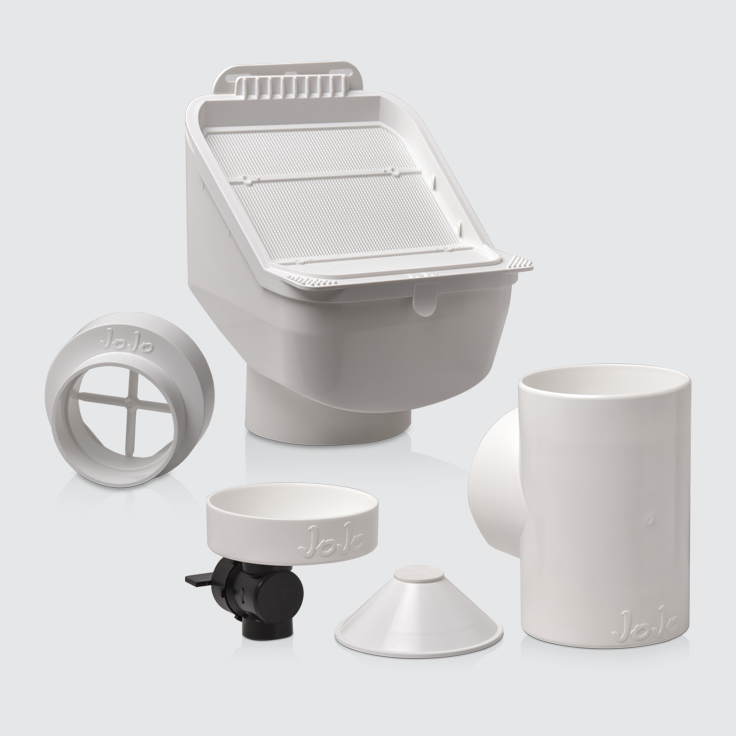

Rainhead & First Flush Rainwater Diverter Combo

Rainhead & First Flush Rainwater Diverter Combo

The JoJo Rainhead & First Flush Rainwater Diverter Combo helps improve the quality of harvested rainwater before it enters your storage tank. Working together, these two pre-filtration accessories remove leaves, debris and the most contaminated portion of rainfall, helping keep your stored water cleaner while reducing tank maintenance.

The Rainhead acts as the first line of defence by filtering out leaves, twigs and larger debris as water flows from your gutter. Its unique self-cleaning screen sheds debris with each rainfall, reducing blockages and minimising maintenance.

The First Flush Rainwater Diverter then diverts the initial flow of rainwater, which may contain dust, bird droppings, pollen and other contaminants washed from the roof and gutters. Once the diverter chamber is full, cleaner rainwater is automatically directed into your storage tank.

Why choose the Rainhead & First Flush Combo?

This combination is ideal when you want to:

• Improve the quality of harvested rainwater before it enters your tank
• Remove leaves, twigs and larger debris from roof runoff
• Divert the most contaminated first flush of rainwater
• Reduce sediment build-up inside your water tank
• Reduce tank cleaning and maintenance
• Protect downstream pumps and filtration systems
• Create a more effective rainwater harvesting system

Using both products together provides the best pre-filtration solution for rainwater harvesting. The Rainhead helps prevent leaves and debris from entering the First Flush Diverter, allowing it to operate more effectively and reducing maintenance requirements.

Product Features & Benefits

Rainhead

• Improves the quality of harvested rainwater
• Supplied with an adapter for 110 mm, 80 mm and 75 mm downpipes
• Unique plastic screen prevents rust
• 180° pivot head allows installation at almost any angle
• Self-shedding screen design helps remove debris during rainfall
• Easy to install
• Minimal maintenance required

First Flush Rainwater Diverter

• Flushes away the first, most contaminated rainwater
• Improves the quality of harvested rainwater
• All-inclusive kit for easy installation
• Can be installed horizontally or vertically
• Simple, reliable operation
• Adjustable diverter volume by selecting the appropriate pipe length
• Minimal maintenance required

Helpful Tips

• For the best water quality, always install the Rainhead before the First Flush Rainwater Diverter.
• Install a Rainhead beneath every downpipe that feeds rainwater into your storage tank.
• Leave a 40–80 mm gap between the bottom of the downpipe and the Rainhead screen to allow easy cleaning and prevent debris build-up.
• Use the longest practical 110 mm diverter pipe for the First Flush system. Diverting more of the initial runoff generally results in cleaner water entering your tank.
• Ensure there is sufficient clearance beneath the flow control valve for proper drainage after rainfall.
• Test-fit all components before applying PVC weld glue.
• Lightly sand all interconnecting pipe surfaces before gluing to achieve a stronger, more secure bond.
• For optimal water quality, consider pairing this combo with a JoJo sediment filter and drinking water filtration system for water intended for household use.
