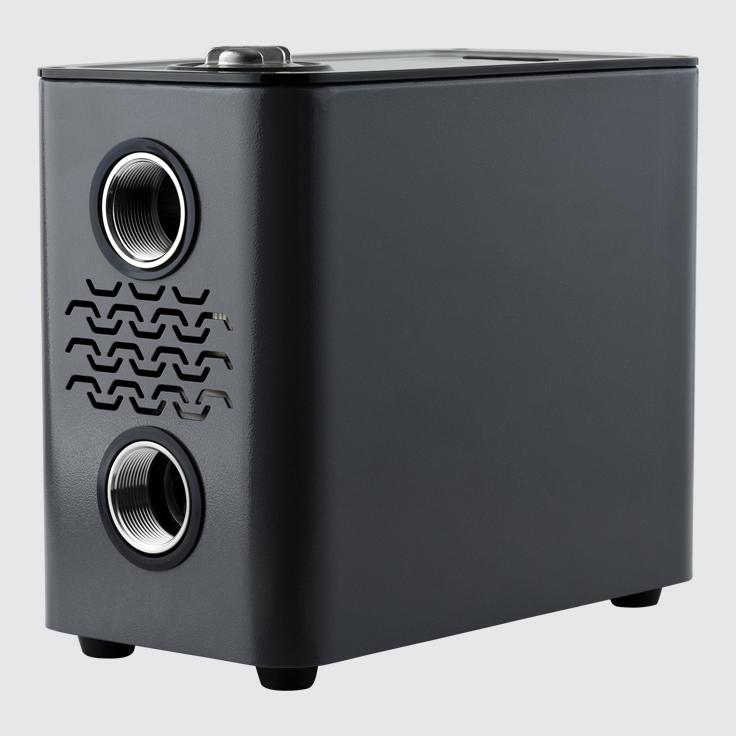

1.1kW Smart Series Pressure Pump

1.1kW Smart Series Pressure Pump

As the most powerful model in the Smart Series range, the 1.1kW Pressure Pump is built to handle large households, high-demand installations, and even light commercial applications.

Its intelligent variable-speed drive ensures constant, reliable pressure across multiple outlets, while the permanent-magnet motor delivers superior efficiency — consuming up to 50% less energy than traditional pressure pumps. Despite its strength, the unit remains compact and quiet, enclosed in a sleek, noise-reducing housing that blends performance with modern design.

Important: While the pump includes its own housing, it must be installed with a protective pump cover to safeguard it against the elements and to keep your warranty valid.

What Sets this Pump Apart

• Heavy-Duty Performance — Designed to meet the demands of large households and higher water-use applications.
• Precise Flow & Pressure Control — Variable-speed intelligence adjusts output to maintain consistent pressure at every tap.
• Ultra-Quiet Operation — Engineered to minimise mechanical, fan, electromagnetic, and fluid noise.
• High Efficiency — Permanent-magnet design eliminates rotor losses and stays efficient across varying loads.
• Significant Energy Savings — Uses up to 50% less power than traditional pressure pumps.
• Easy Installation — Compact, lightweight build for quick, flexible setup.
• Reduced Maintenance — Lower losses and minimal heat generation mean less wear and a longer service life.

Product Features & Benefits

• 1-year warranty
• Best efficiency pressure range 2 to 3.5 bar
• Best efficiency flow range 67 to 150lt/min
• Constant pressure supply
• Ideal for solar systems
• Automatic start/stop function
• Leak detection
• Dry run protection
• Locked rotor detection
• Over- and under-voltage protection
• Overload and abnormal pressure protection
• Easy to install and operate
• Pre-wired with a 3-point plug

Important Information

• The pump should be installed in a ventilated, undercover area to protect the unit against direct sunlight, rain and spray from any irrigation system. A JoJo pump cover is recommended for best protection.
• Read the user instructions before making adjustments — incorrect settings can impact performance.
• Recommended piping:
  • Suction: HDPE or Helical coil reinforced flexible hose (min. 40mm)
  • Discharge: HDPE or any SABS-approved piping (40mm)
• The pump must be earthed with no strain placed on the electrical cable.
• All maintenance should be carried out with the power supply disconnected.
• The pump is designed for clean water use only, i.e. water containing no solid particles. Pumping muddy water or water containing suspended solids will severely reduce the lifespan of the unit and falls outside of the factory warranty.
• Extending the cable will affect your factory warranty. Always make use of an approved extending plug adapter.
• It is recommended to drain the unit when temperatures drop below 0°C. To do so, loosen the bleed screw on the pump and disconnect the suction piping to allow the water to drain out.
• Before moving or disassembling the pump, always close the valves on both sides and fully drain the liquid from the pump and connected piping.
