Rainwater Harvesting Above Ground
JoJo’s Rainwater Harvesting Solution consists of a tank that accumulates water whenever it rains. It requires the installation of a pre-filtration solution, as well as suitable guttering and piping to transport the rainwater to the tank. Simple to install, its advantages include self-sufficiency and the convenience of not being dependent on regulated water resources.
Rainwater Harvesting Benefits
- Free & unlimited water supply
- Saves water
- Reduces water bills
- Access to adequate water supply when needed
- Water fit for low-grade uses
- Water can be consumed if properly filtered

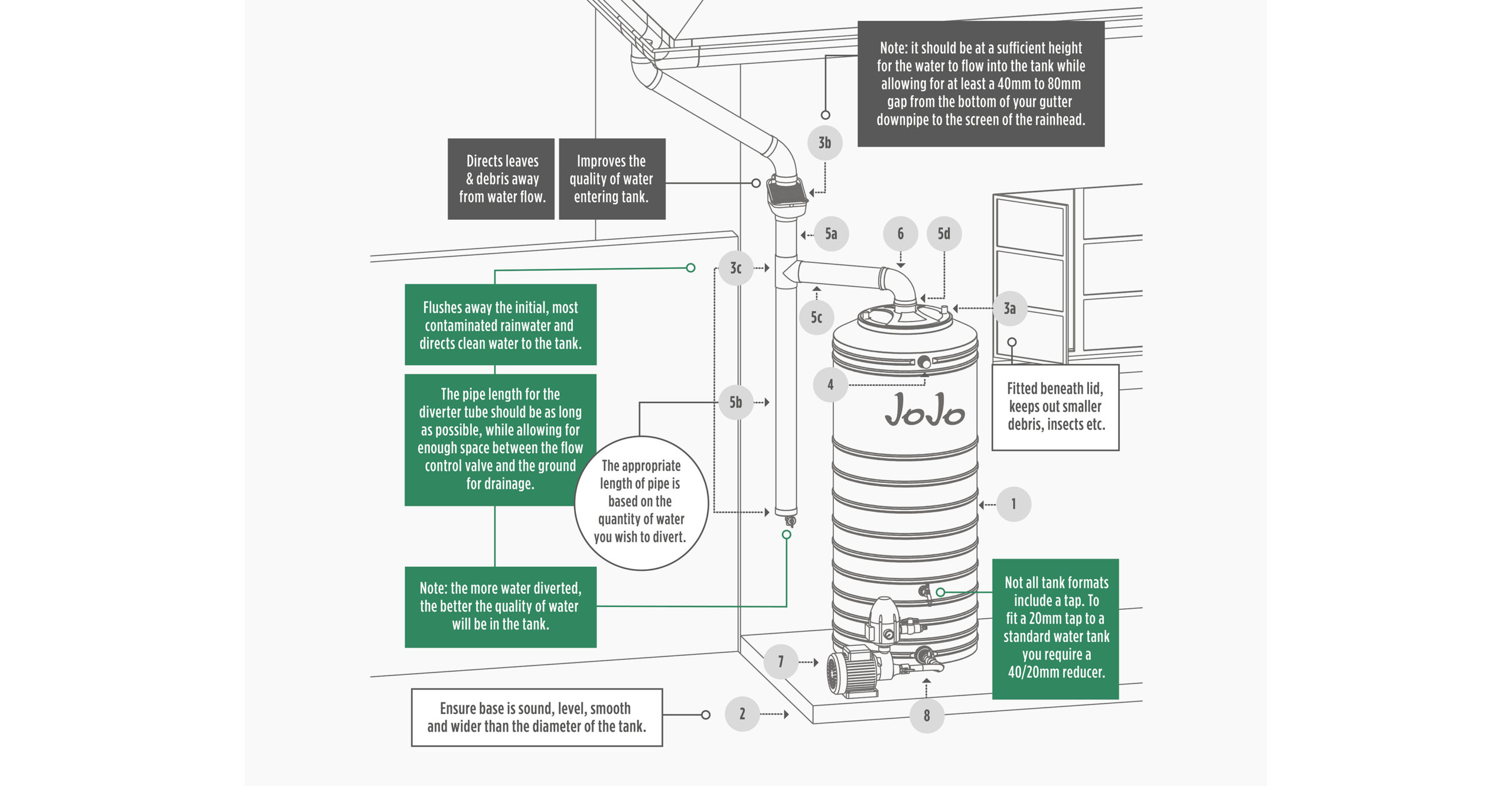

There are three pre-filtration options which will improve the quality of the water entering into the tank:
3a. Mesh/Tank Screen – beneath the lid
3b. Rainhead i.e. Leaf Eater
3c. First Flush Diverter
4. Pipes – 3 x 110 mm SV pipes
Lengths will vary depending on installation.
4a. From bottom of T-junction to slow release control valve (included in the First Flush Diverter).
4b. From side of T-junction to the elbow.
4c. From elbow through lid into the tank.
5. Elbow - 110mm
6. Tap - 20mm
To be purchased separately from dealer. An additional 40/20 reducer is then required to fit the tap onto the tank.
This is an example of a basic Rainwater Harvesting System. Each installation will vary based on the setup and your personal preferences.
Although rainwater systems are relatively maintenance-free, there are certain things that you should regularly undertake in order to prolong your system’s life, reduce the potential for damages and ensure you enjoy maximum benefits.
Rooftops should be cleaned regularly to avoid contamination of the runoff. Dust, leaves, animal excrement and dead insects accumulate on the roof during dry weather. It is therefore important to ensure that the roof is cleaned before the rainy season starts, followed by a monthly check to keep it clean.
2. Overhanging branches
See to it that branches overhanging the roof are regularly trimmed back.
Ensure that gutters are free from leaves. It is a good idea to consider installing gutter mesh.
Regularly check the pre-filtration device(s) to ensure that it is free from leaves and that rainwater is able pass through.
5. First Flush Diverter
If a First Flush Diverter is installed, check and clean it out on a monthly basis. Ensure that the diverter is dripping out sufficiently in order to reset the system.
6. Keeping your tank clean
Inspect the inside of your tank every 3 months to make sure that leaf litter has not built up at the bottom of the tank. A properly designed system should not allow leaves and other material to enter the tank.
7. Water Quality
Remember that water collected from your roof will not be clean. If you intend to use the rainwater for drinking purposes, consult an installer with experience in installing water filtration systems. For irrigation purposes, however, this water is ideal.
1. Pre installation
A. Choose a tank
Calculate which size tank you require for rainwater harvesting.
Note: The biggest downfall of rainwater harvesting is lack of storage capacity.
|ROOF P/M2||TANK SIZE|
|50 - 100||750lt - 2200lt|
|200 - 400||2500lt - 10 000lt|
B. Tank placement
Tank should preferably be placed at a downpipe, or alternatively be repositioned through the use of proper piping/guttering.
Tanks must be installed on a sound, level and smooth surface. Level paving will suffice, or a properly designed tank stand. Alternatively, a plinth needs to be built, ideally with a concrete surface bed at least 85mm thick.
D. Recommended Base Sizes
It is recommended that the foundation should be at least 100mm wider than diameter of tank.

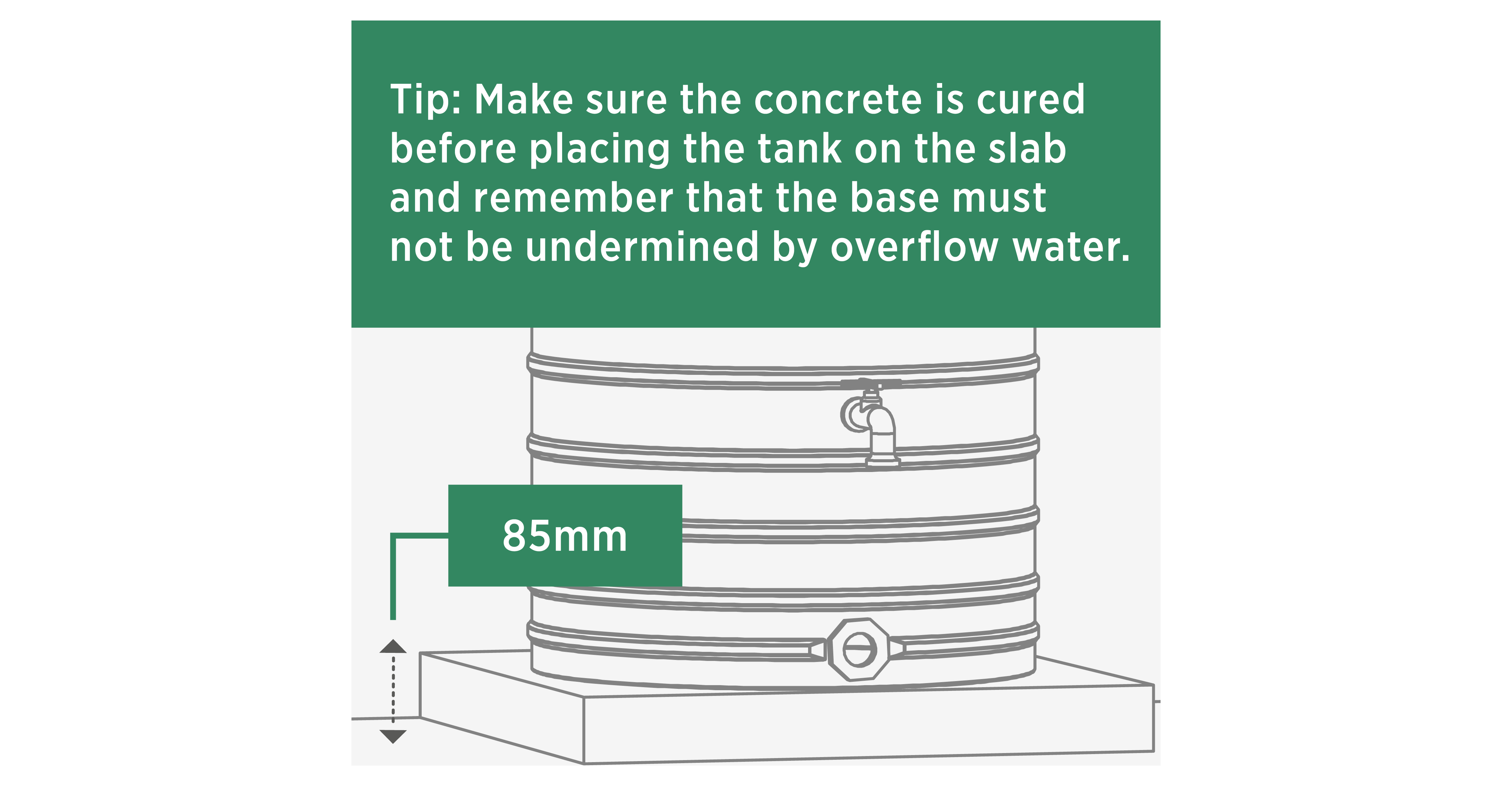

1. Base/concrete plinth
Ensure that the tank is installed on suitable base. The base must be sound, level, smooth, free of any protrusions and at least 100mm wider than the base of the tank (refer to pre-installation).

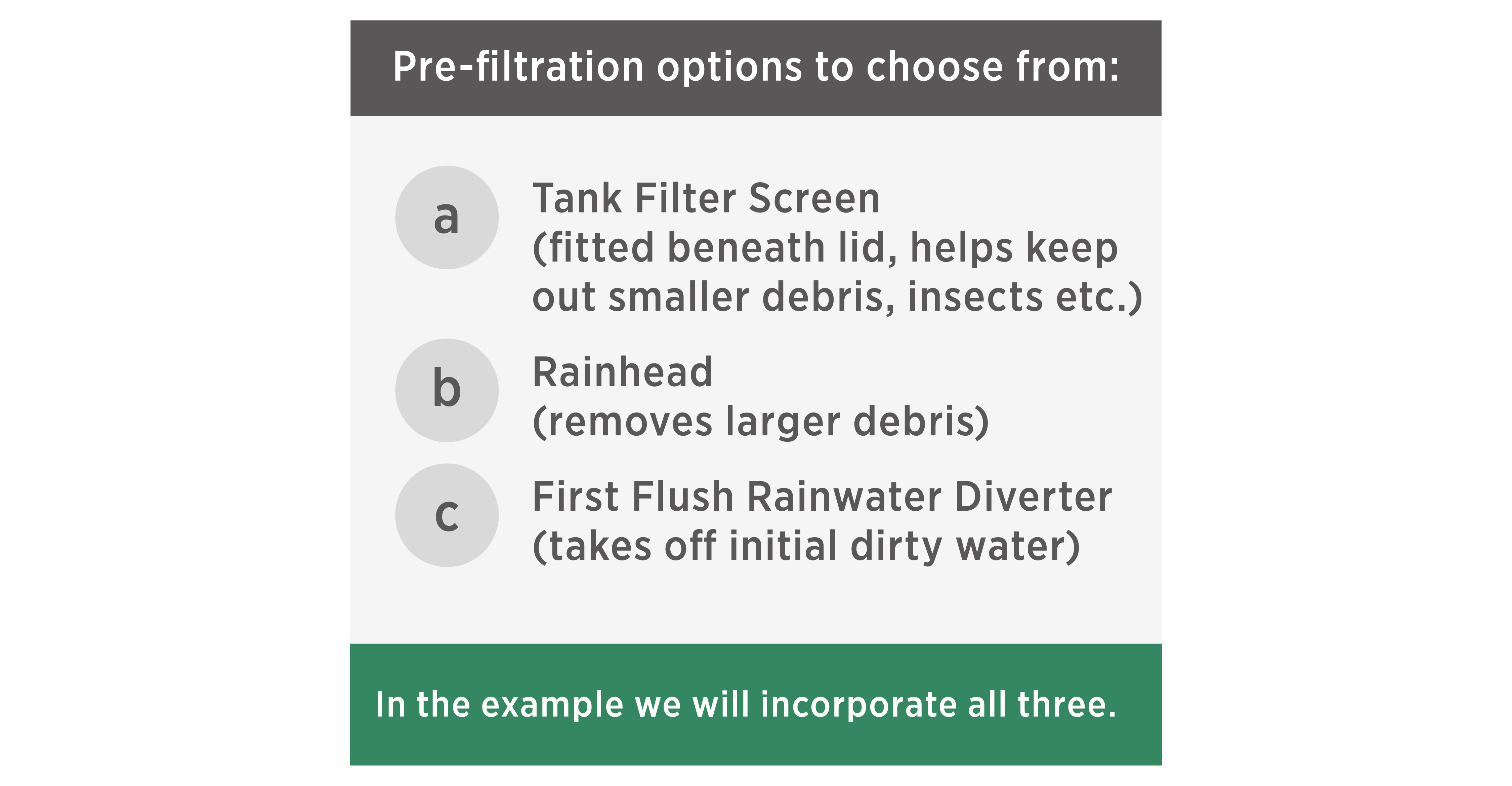

2. Select pre-filtration
Select desired pre-filtration options. Pre-filtration will differ depending on your preference and the intended use of the water.

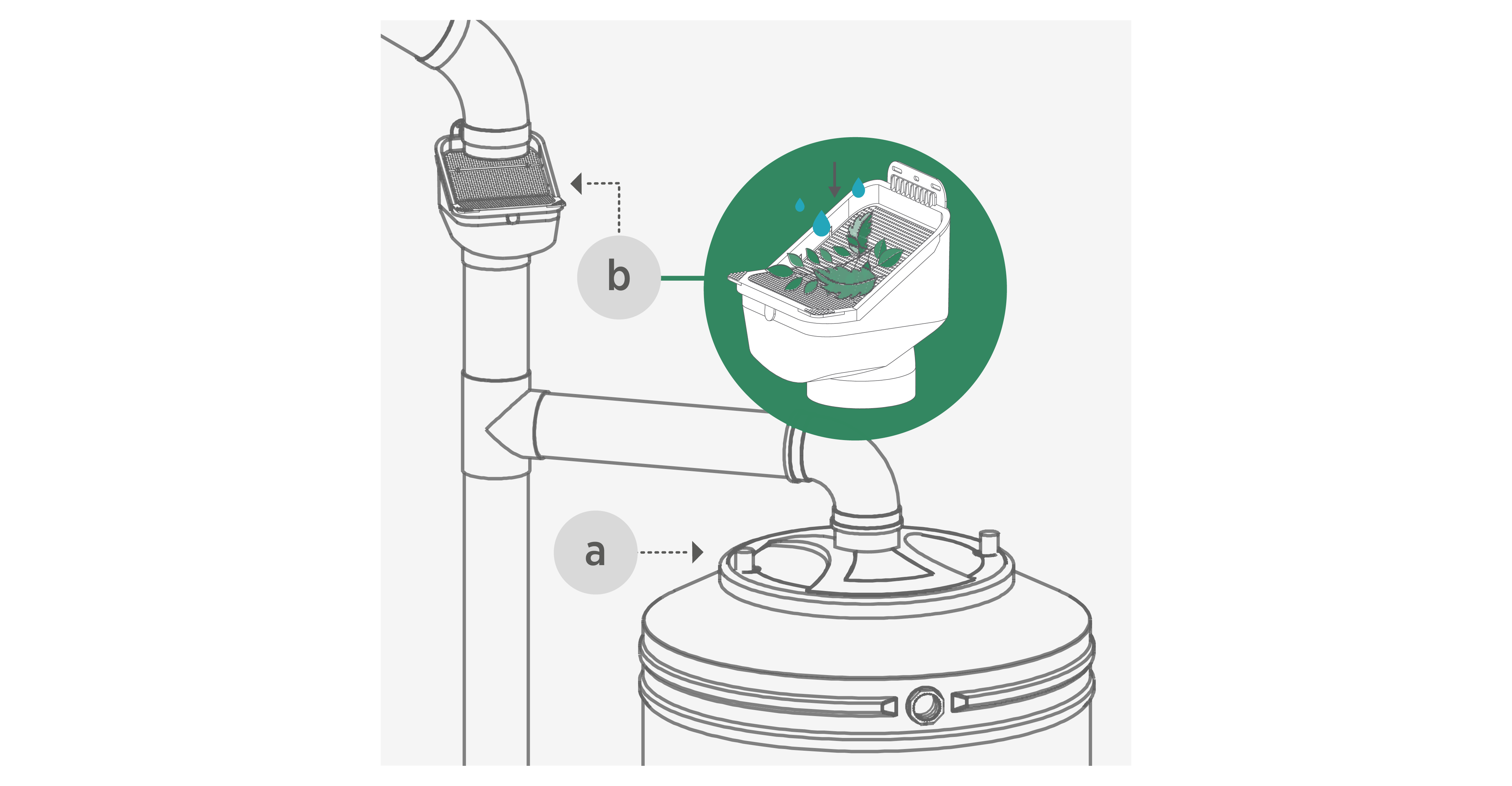

3. Tank Screen/Leaf Eater
a. Ensure that the Tank Screen is fitted beneath the lid of the tank.
b. Fit the leaf eater to the downpipe (vertically or horizontally).

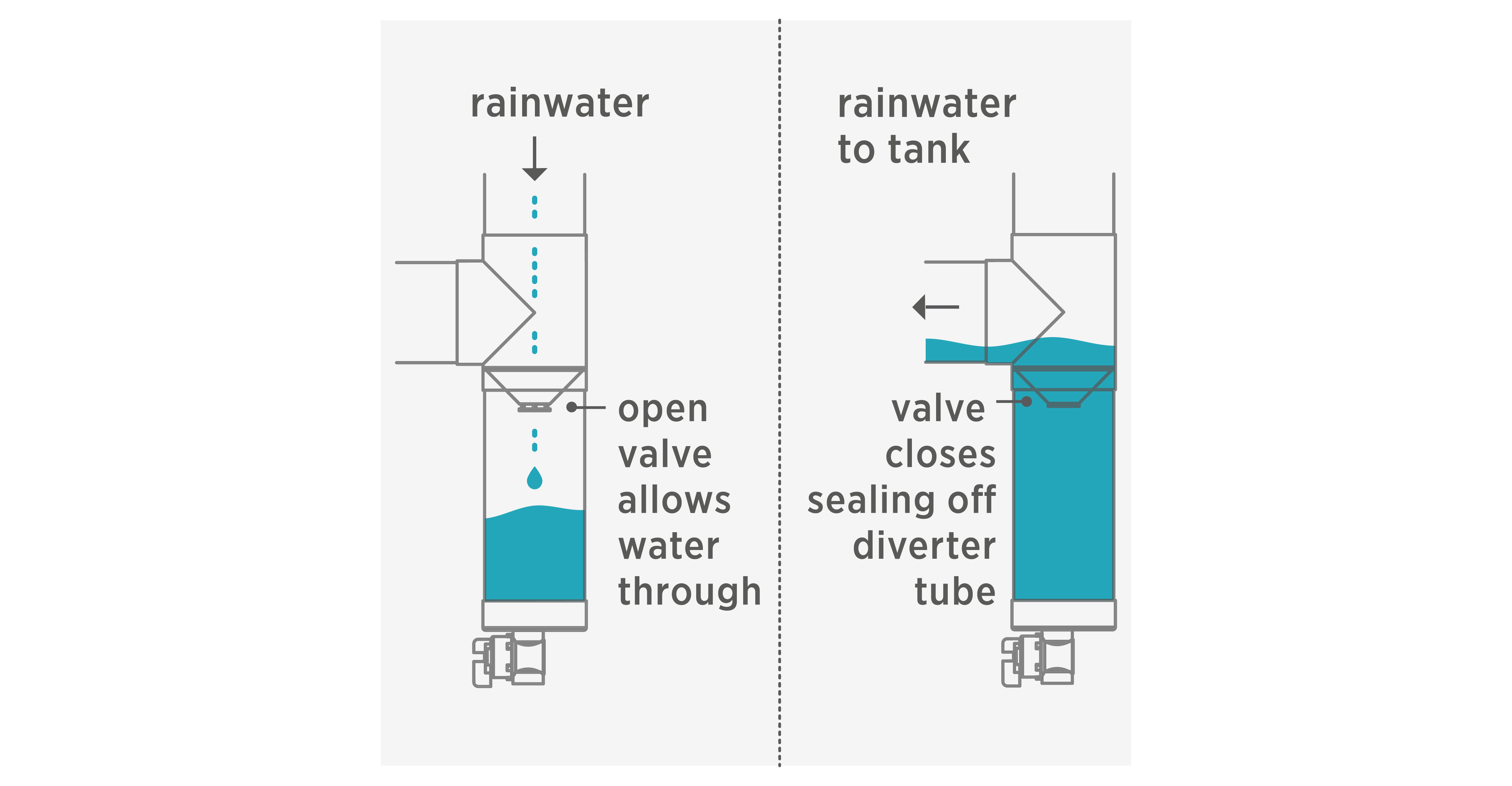

4. First Flush Diverter
Install the First Flush Diverter as per instructions provided inside the packaging. Note: the first flush utilises a dependable ball & seal system, requiring no manual intervention.

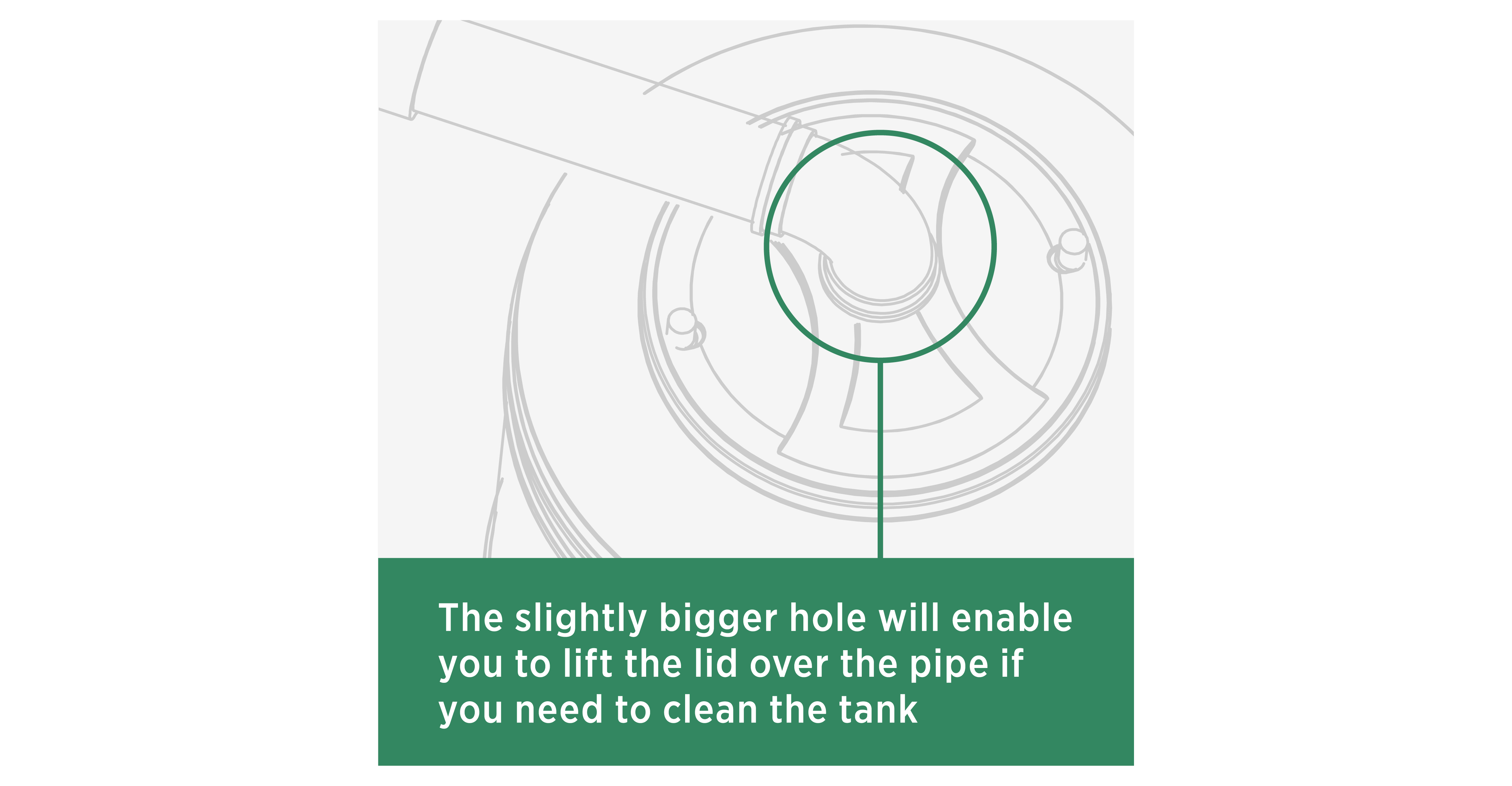

5. Cut a hole into the lid of the tank
Cut a hole of 110.5mm in the middle of the lid and fit the pipe through the hole, stopping before the mesh/tank screen.
Install an additional elbow and pipe to the overflow, then route to a suitable desired area to ensure no water goes to waste.
